Refrigeration Cycle PowerPoint Presentations
Written in the order you do the job
Built on years in the trade and the classroom
Physical orders usually ship in 1-2 days
A refund if it is not for you
From the AC Service Tech channel
If it is not what you needed, tell us within 30 days for a refund. The terms are on the refund policy page.
The HVACR training brand behind the YouTube channel, the books and the HVAC Academy.
This PowerPoint Bundle includes 11 distinct PowerPoint Presentations with presenter notes, that are designed to teach the refrigeration cycle on various systems.
There are two types of presentations included in this bundle. The “Detailed” versions are based on our HVAC Refrigeration Cycle Posters. The other versions are designed to pair directly with the "Refrigerant Charging and Service Procedures for Air Conditioning" book for the refrigeration cycle sections.
Each PowerPoint includes presentation notes for instructors to utilize or for individuals to read through each step of the refrigeration cycle. Please note, these are read-only PowerPoint Presentations that cannot be edited in order to protect the integrity of the training information. Make sure to view the PowerPoints in "Presenter View" to see the notes for each slide while in slide show mode.
The Refrigeration Cycle PowerPoint Presentation Bundle includes the following presentations:

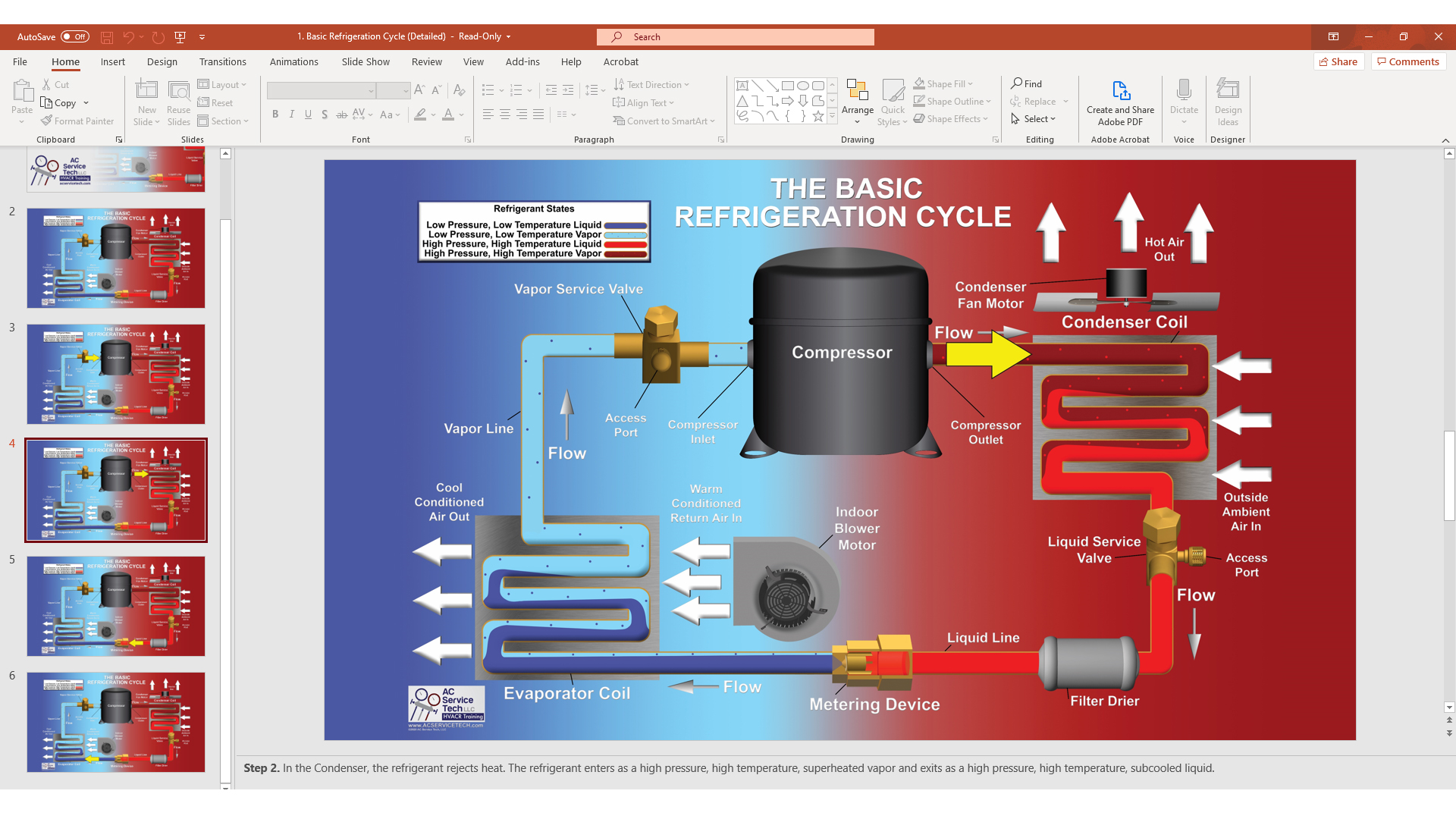

1. Basic Refrigeration Cycle (Detailed) – 6 Slides

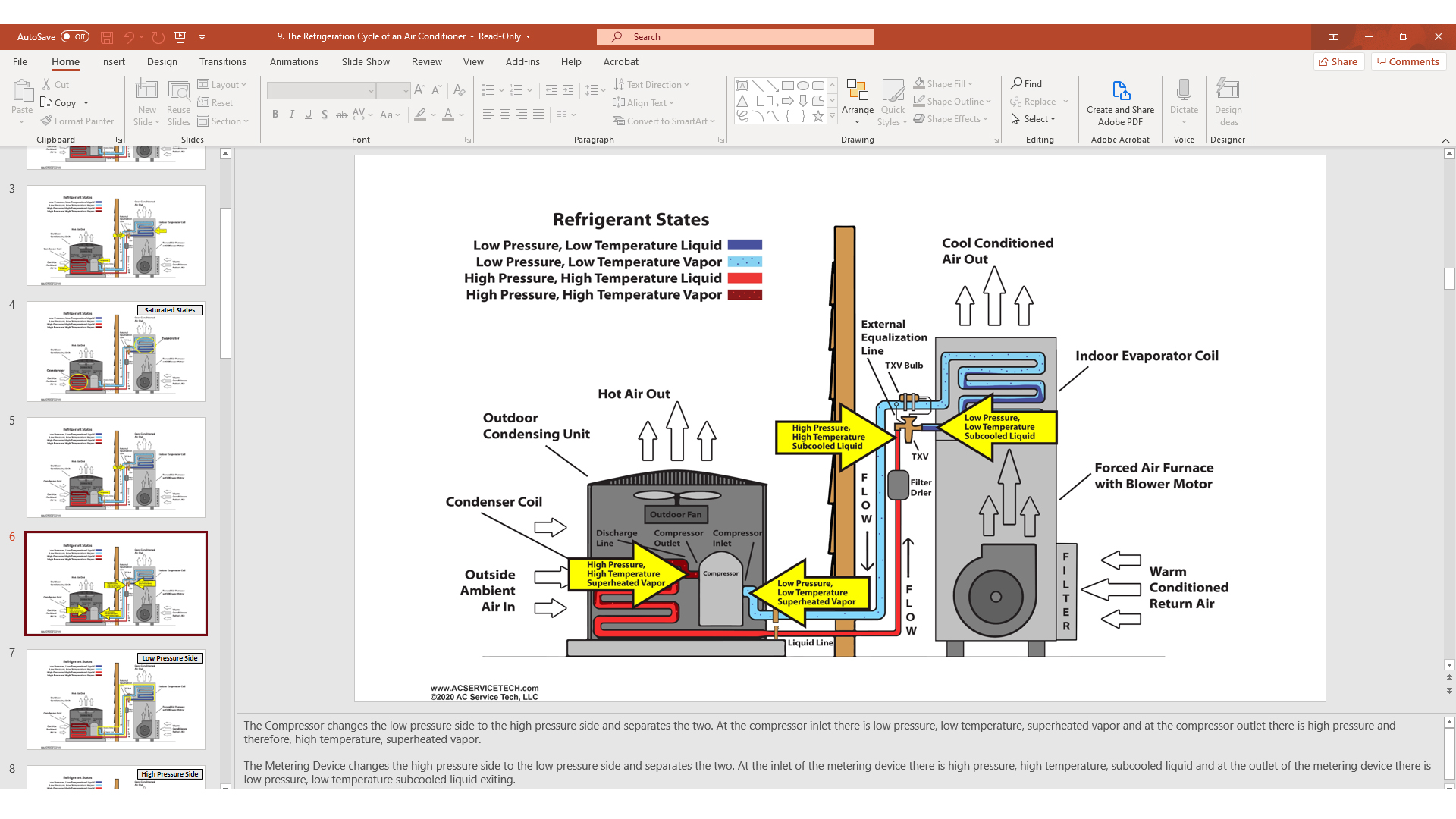

2. The Refrigeration Cycle of an Air Conditioner (Detailed) – 23 Slides

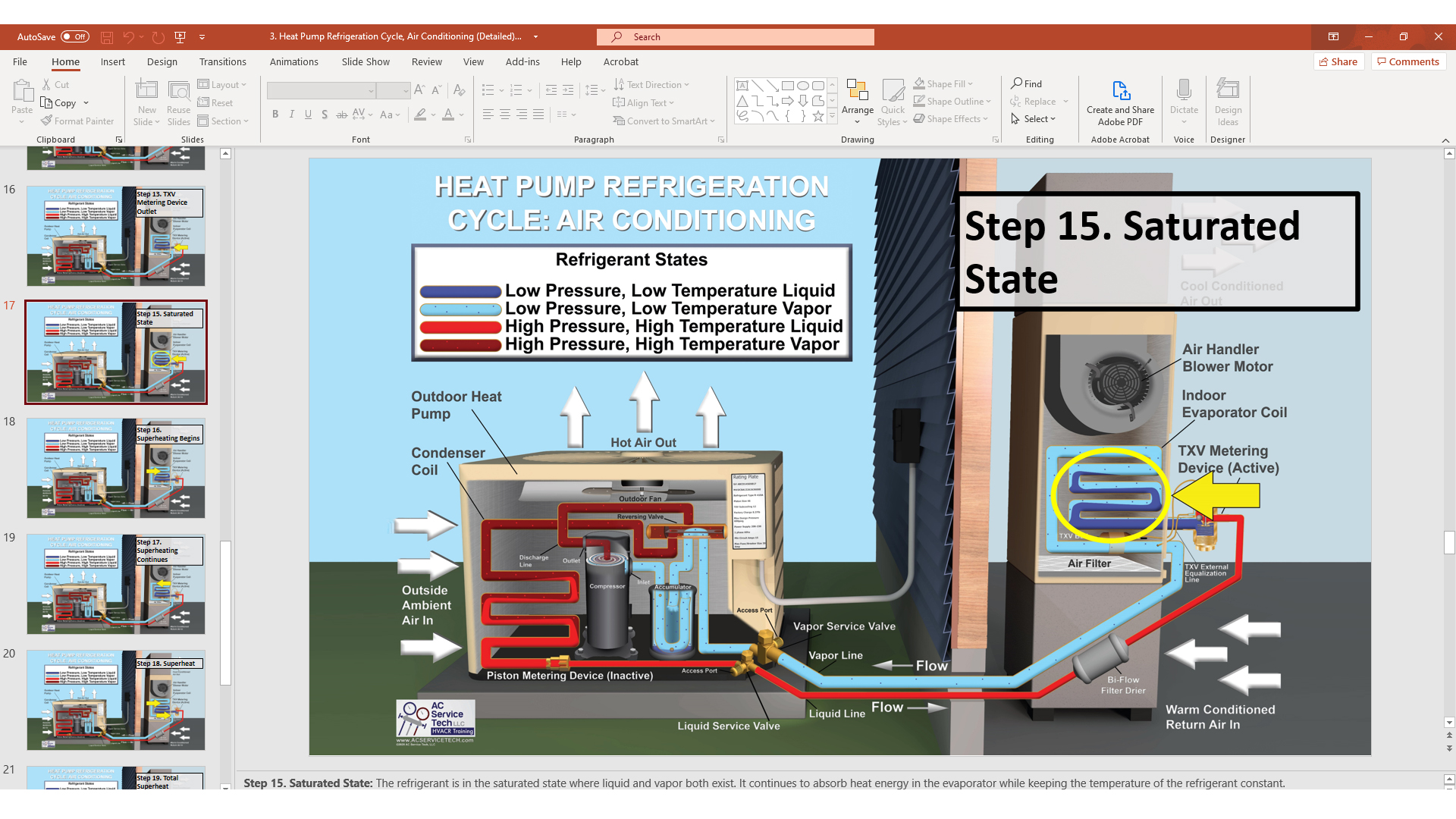

3. Heat Pump Refrigeration Cycle, Air Conditioning (Detailed) – 24 Slides
4. Heat Pump Refrigeration Cycle, Heating (Detailed) – 24 Slides

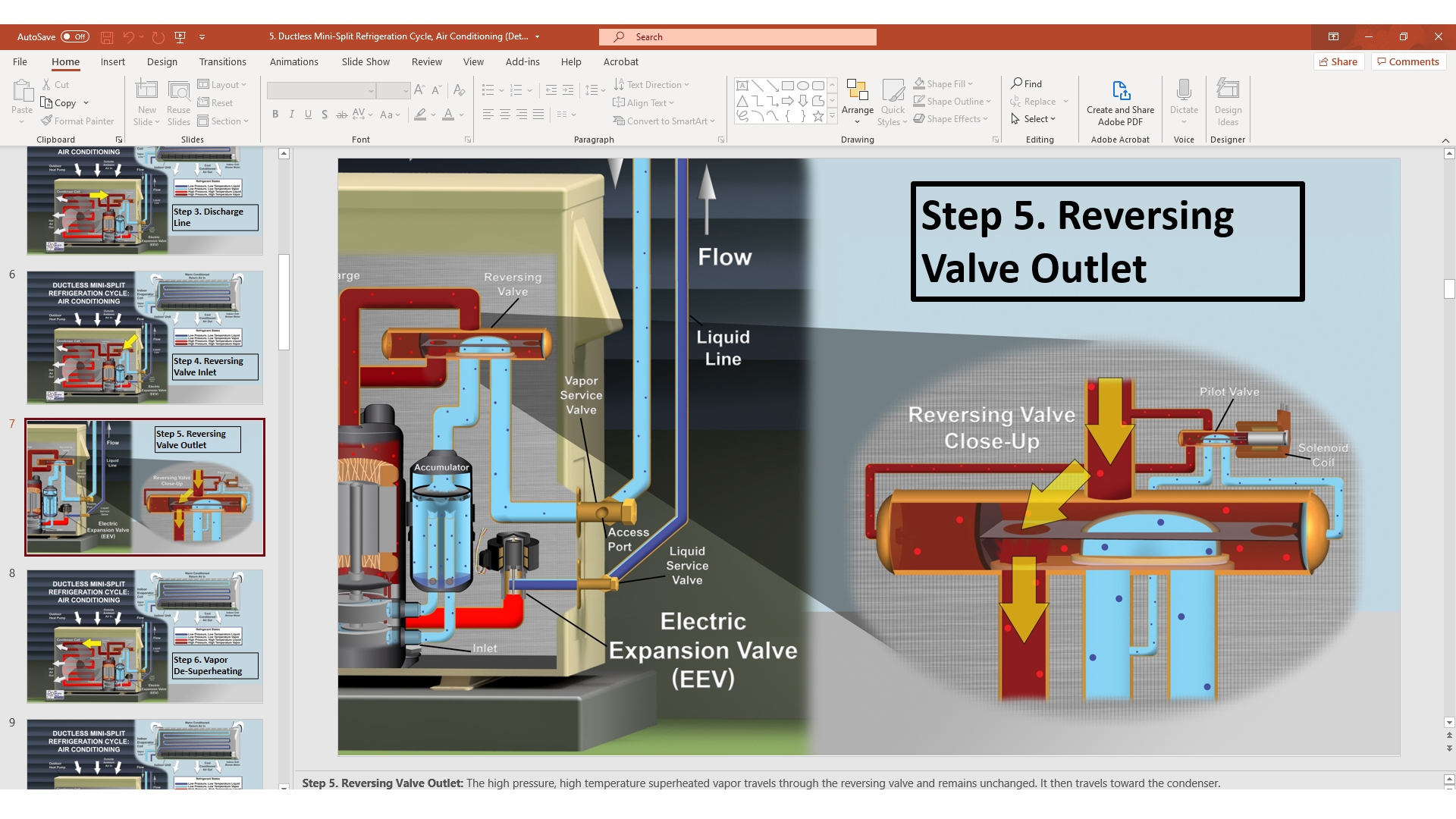

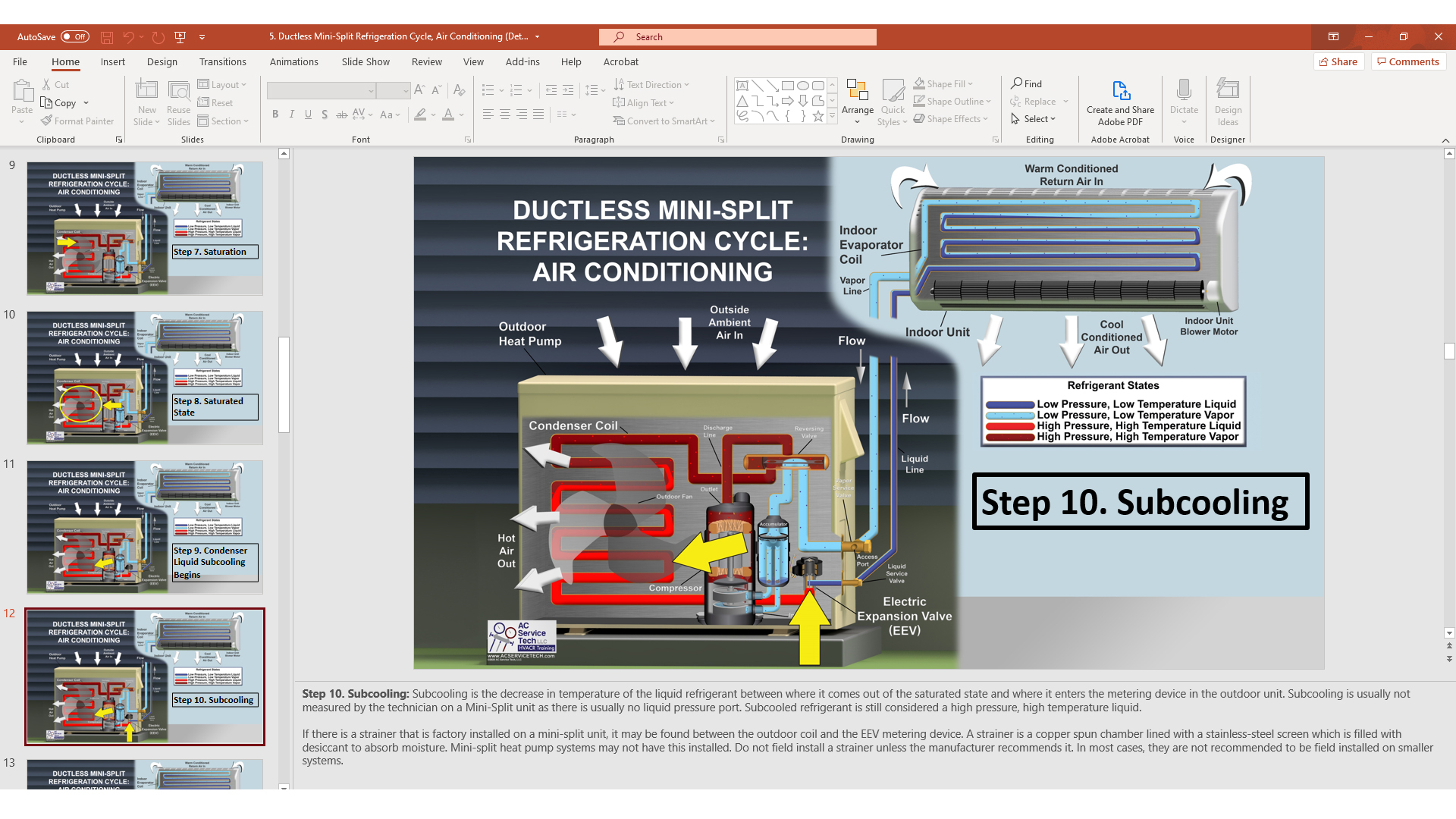

5. Ductless Mini-Split Refrigeration Cycle, Air Conditioning (Detailed) – 28 Slides
6. Ductless Mini-Split Refrigeration Cycle, Heating (Detailed) – 28 Slides
7. Walk-In Box Refrigeration Cycle (Detailed) – 30 Slides

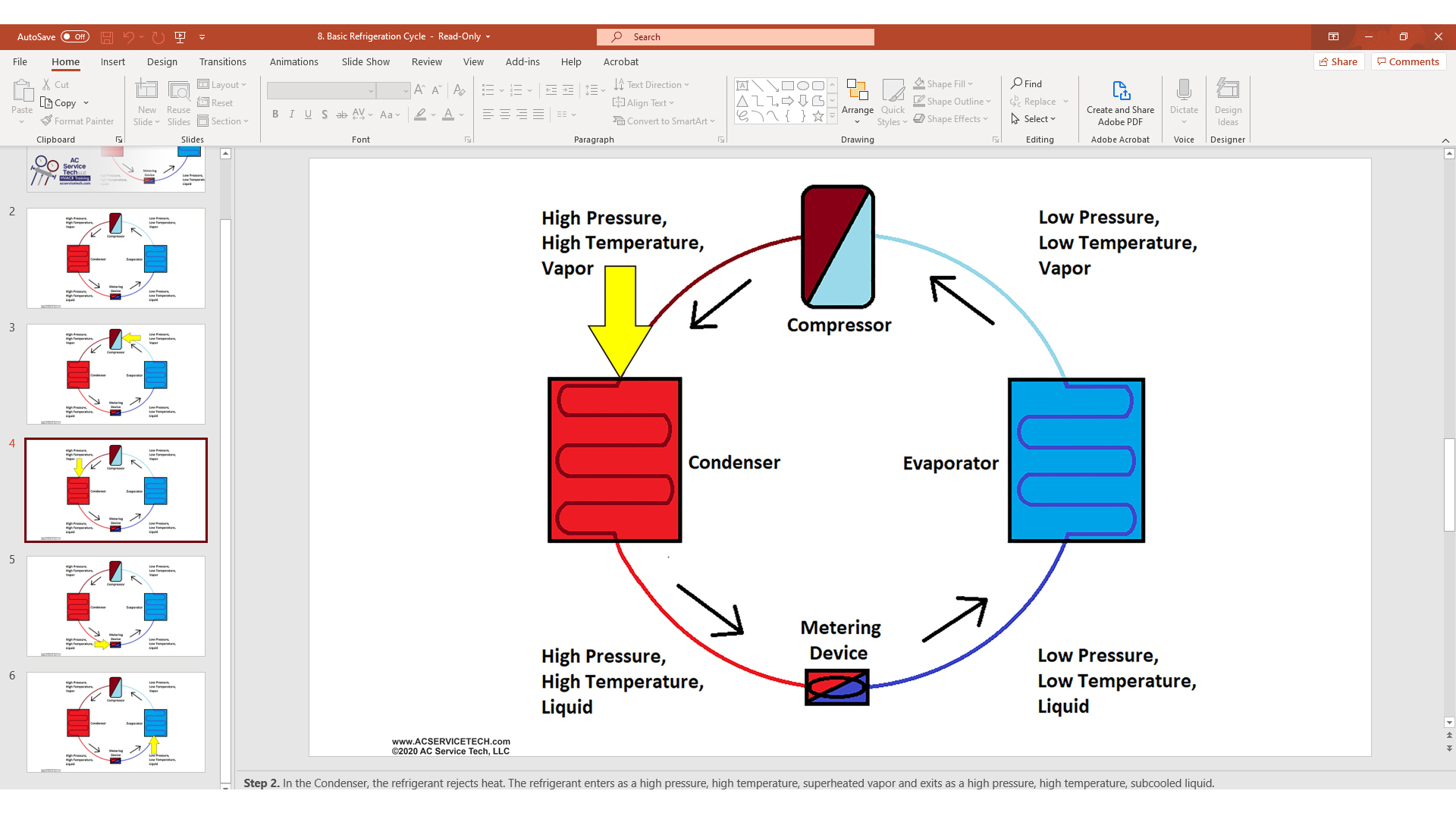

8. Basic Refrigeration Cycle – 6 Slides
9. The Refrigeration Cycle of an Air Conditioner – 23 Slides

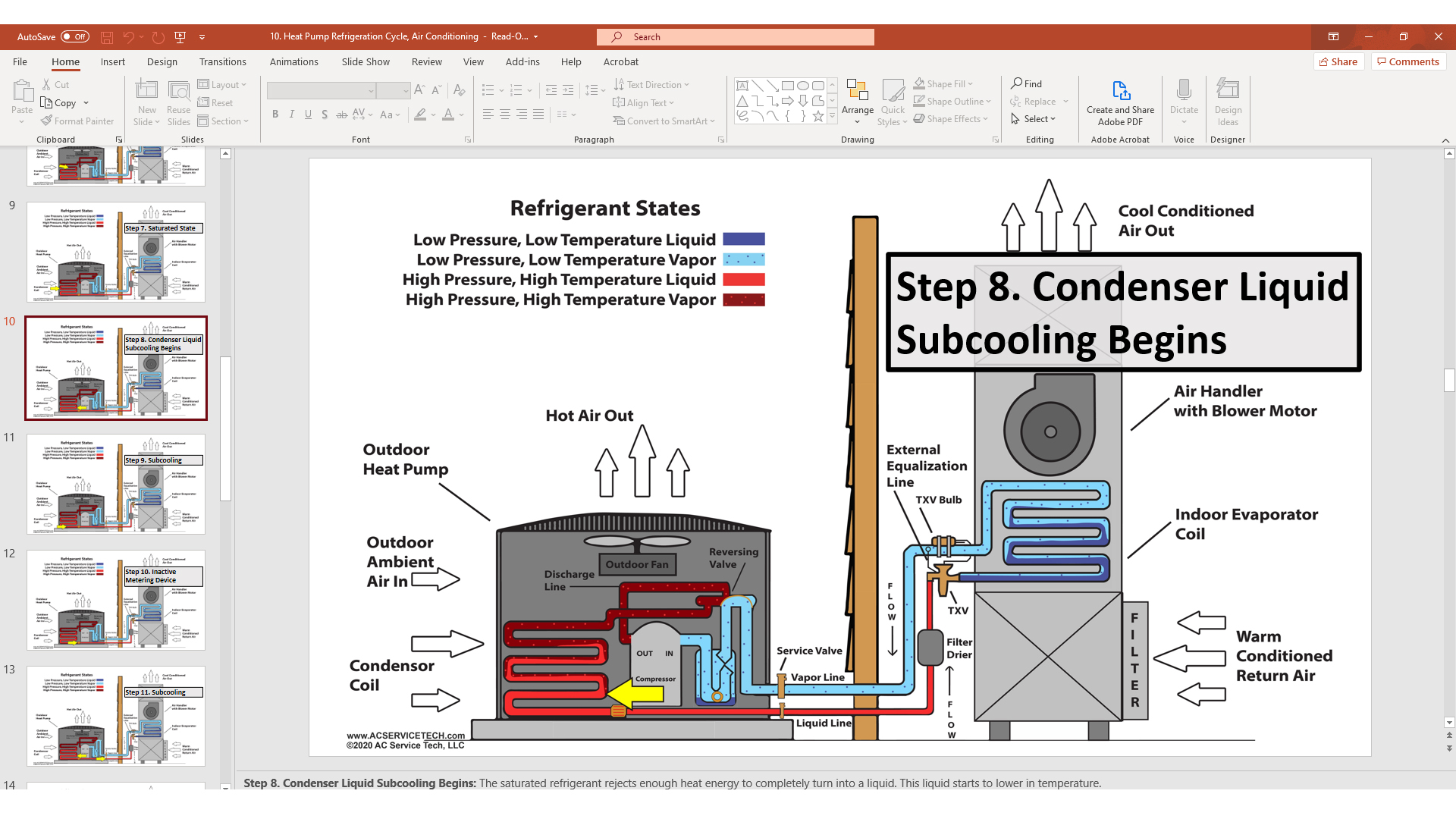

10. Heat Pump Refrigeration Cycle, Air Conditioning – 24 Slides

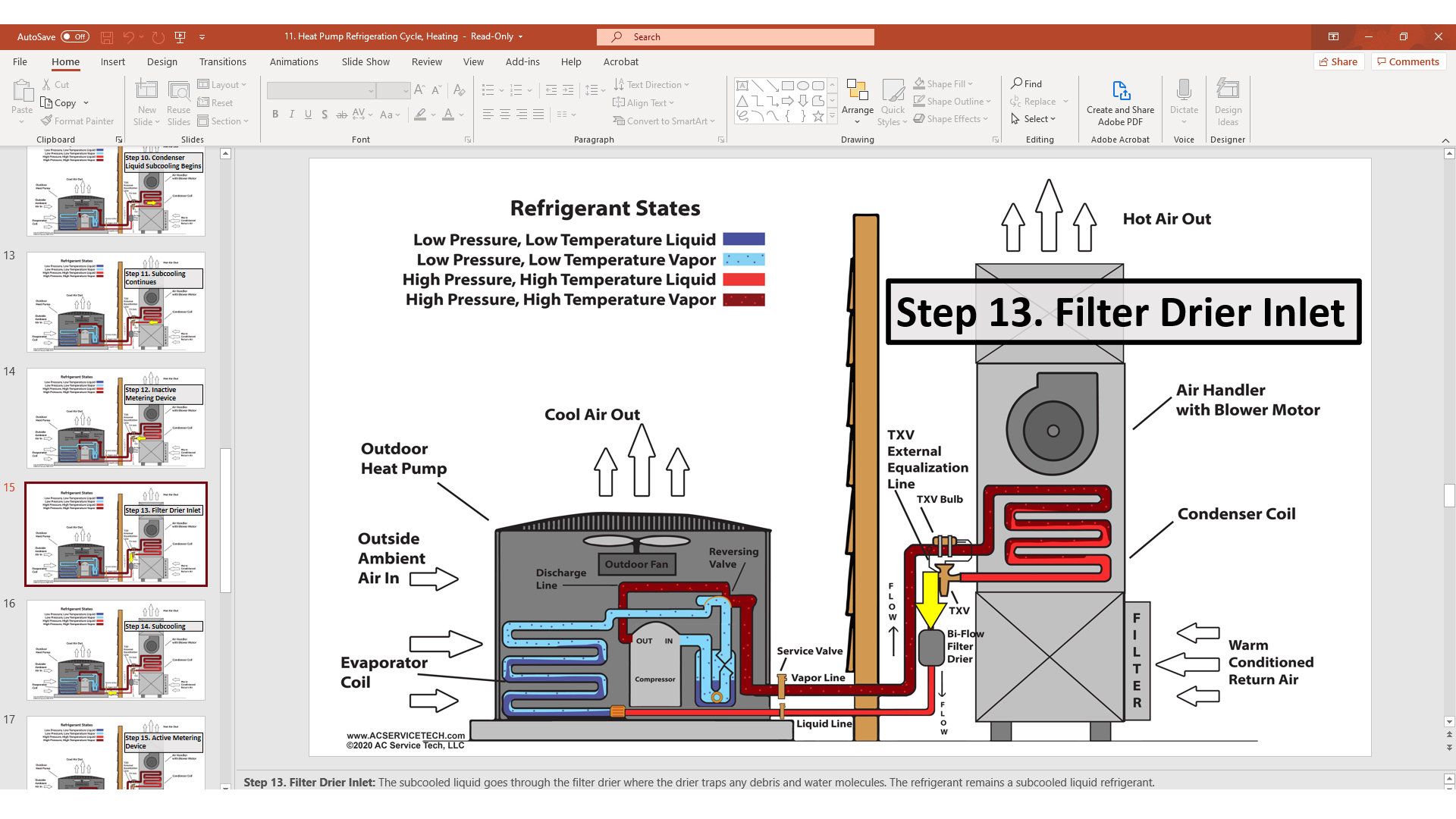

11. Heat Pump Refrigeration Cycle, Heating – 24 Slides
File Format
This PowerPoint Bundle will be provided for download as a .zip file containing 11 individual PowerPoint Presentations in the Microsoft PowerPoint Presentation (.pptx) format.
File License
This PowerPoint Presentation is a read only presentation and modifications may not be made to this file or presentation. For full terms of use, please refer to the terms and conditions available at checkout.
