HVAC Quick Reference Cards for Refrigerant Charging and Troubleshooting
Written in the order you do the job
Built on years in the trade and the classroom
Physical orders usually ship in 1-2 days
A refund if it is not for you
From the AC Service Tech channel
If it is not what you needed, tell us within 30 days for a refund. The terms are on the refund policy page.
The HVACR training brand behind the YouTube channel, the books and the HVAC Academy.

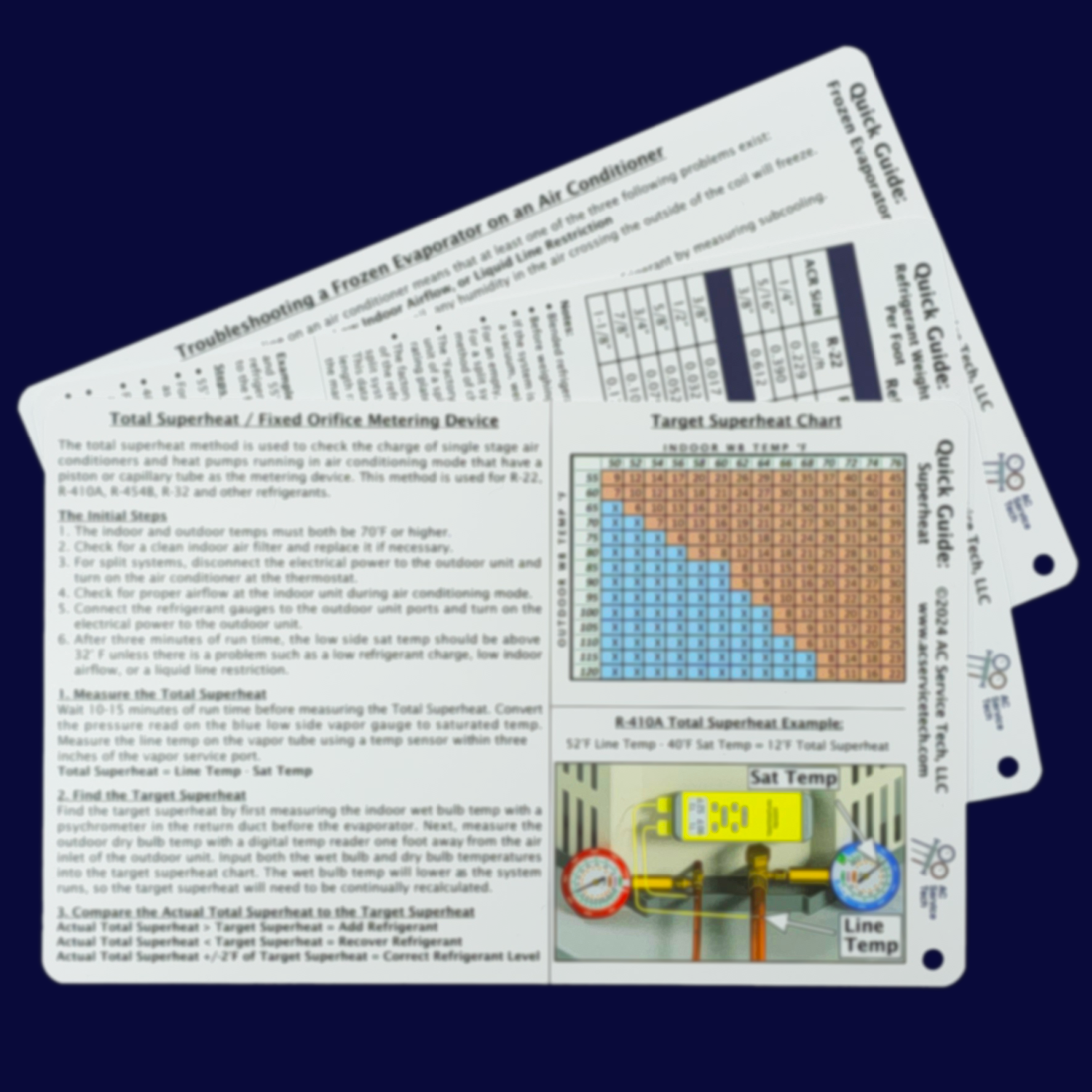

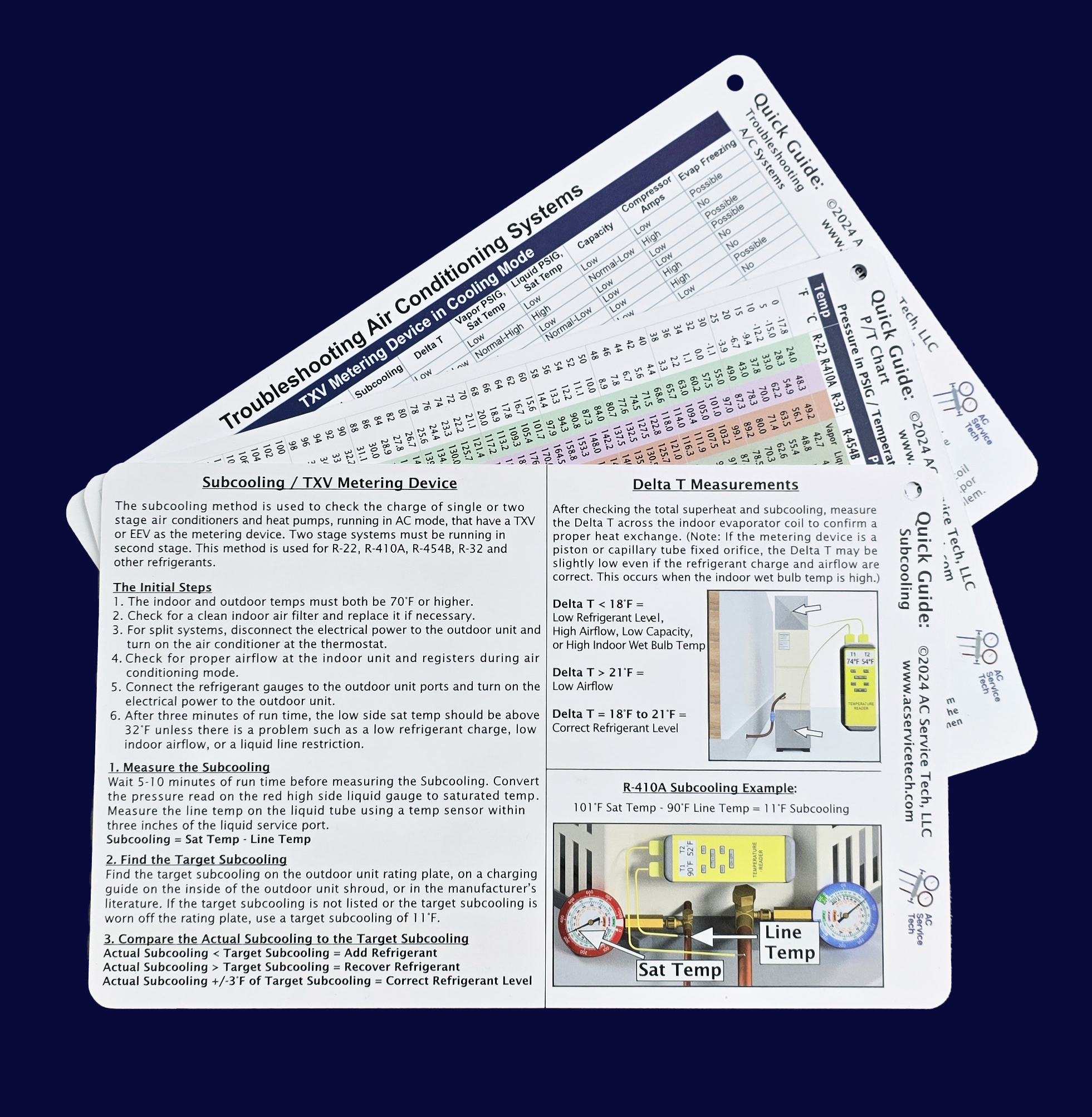

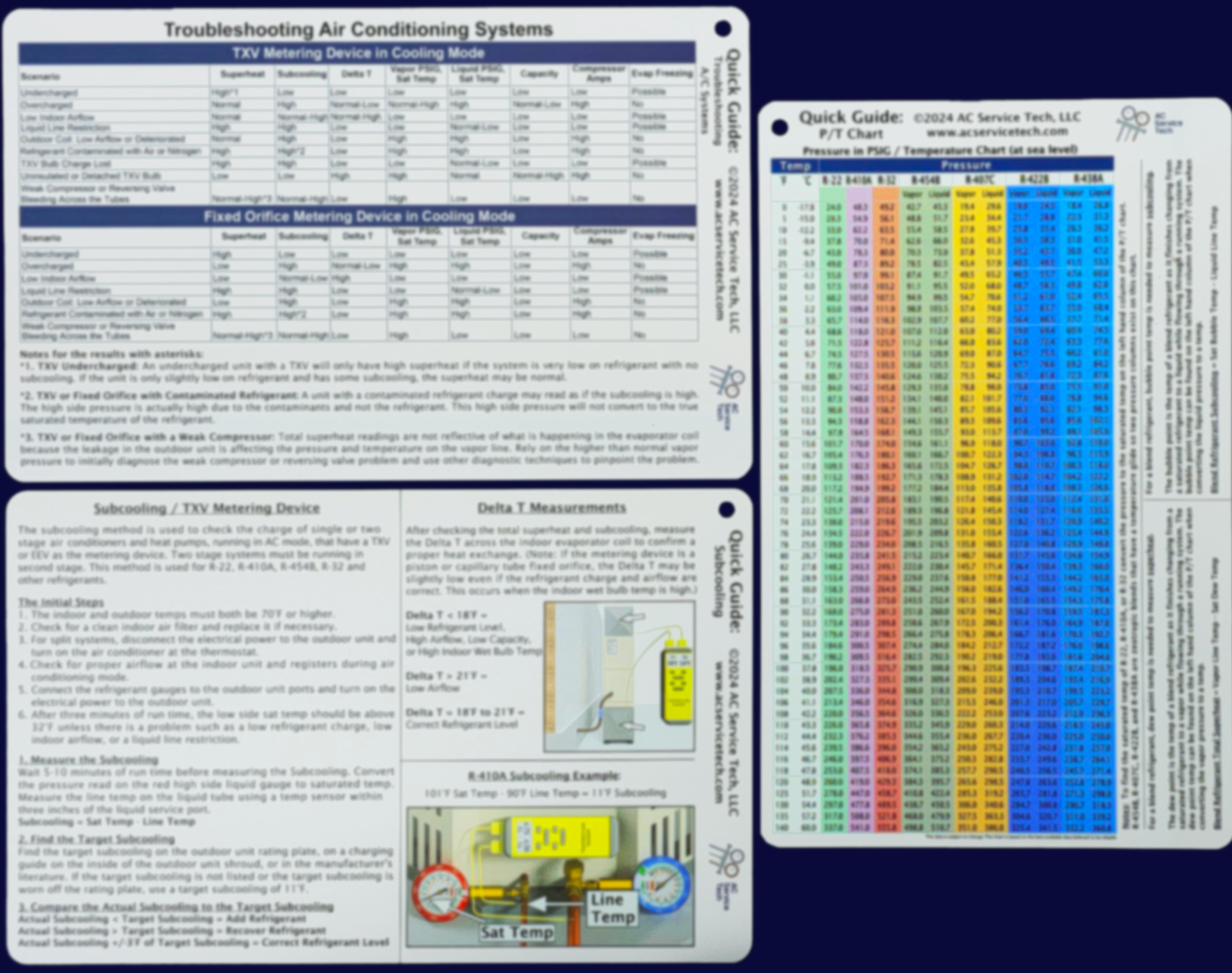

These three UPDATED HVAC quick reference polystyrene cards are double sided and designed to be used with Air Conditioners and Heat Pumps to measure the refrigerant charge level in a unit, charge refrigerant, troubleshoot refrigerant based problems, and measure heat transfer to determine if there is a problem.
- Use the P/T Chart to find the Saturated Temperature of the common refrigerants R-32, R454B, R-410A, R-22, R-407C, R-422B, and R-438A.
- Use the Guide to determine how to find the Bubble and Dew Saturated Temps of Blend Refrigerants.
- Use the Refrigerant Weight Chart to calculate the amount of refrigerant needed per foot of tubing R-32, R454B, R-410A, R-22, R-407C, R-422B, and R-438A.
- Use the Guide to weigh in the full or partial refrigerant charge into an empty vacuumed unit.
- Find the Target Subcooling to measure the refrigerant level of systems with a TXV metering device.
- Use Subcooling to determine if a system is undercharged, correctly charged, or overcharged.
- Use Delta T to determine if the system is exchanging heat properly.
- Find the Target Superheat to measure the refrigerant level of systems with a fixed orifice metering device.
- Use Total Superheat to determine if a system is undercharged, correctly charged, or overcharged.
Special Features
Flexible, Weather and UV Resistant Polystyrene Card Material
Tested 0°F-130°F
