Basics for Checking the Refrigerant Charge of an Air Conditioner Presentation
Written in the order you do the job
Built on years in the trade and the classroom
Physical orders usually ship in 1-2 days
A refund if it is not for you
From the AC Service Tech channel
If it is not what you needed, tell us within 30 days for a refund. The terms are on the refund policy page.
The HVACR training brand behind the YouTube channel, the books and the HVAC Academy.
This a read-only powerpoint that is split up into 7 distinct sections of slides in order to teach the basics for checking the refrigerant charge of an air conditioning or heat pump system during A/C mode. Make sure to view this powerpoint in "Presenter View" in order to see the notes for each slide.
Slides 1-33 Reading Compound Gauges & Understanding Saturated Refrigerant
Slides 34-42 Airflow and Metering Device Type
Slides 43-61 Connecting the Gauge Set and Air Purging
Slides 62-73 Methods for Checking the Charge

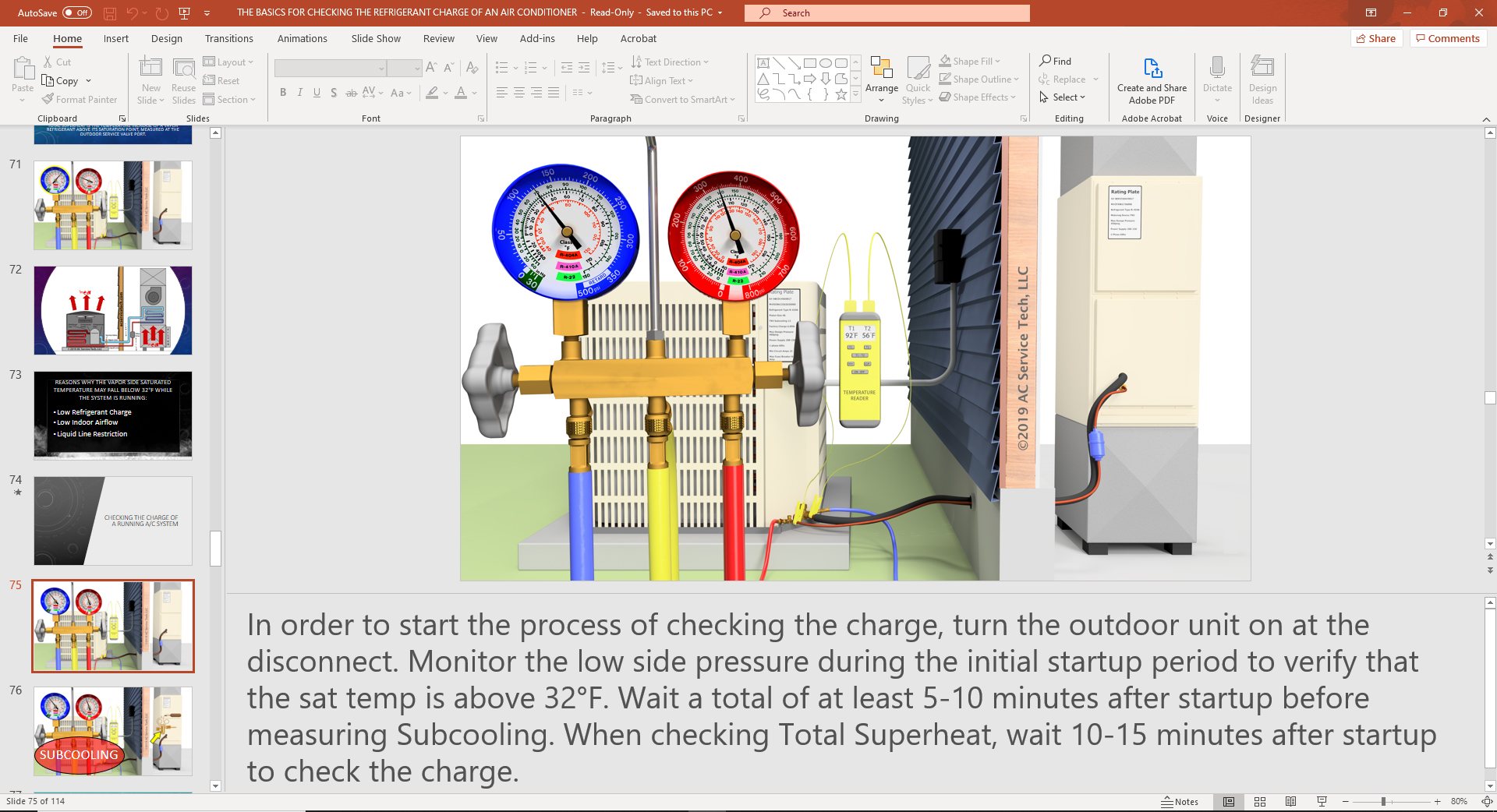

Slides 74-96 Checking the Charge of a Running A/C System
Slides 97- 102 Delta-T Measurements
Slides 103- 114 The Disconnect Procedure
File Format
File Type: Microsoft PowerPoint Presentation (.pptx)
File License
This PowerPoint Presentation is a read only presentation and modifications may not be made to this file or presentation. For full terms of use, please refer to the terms and conditions available at checkout.
